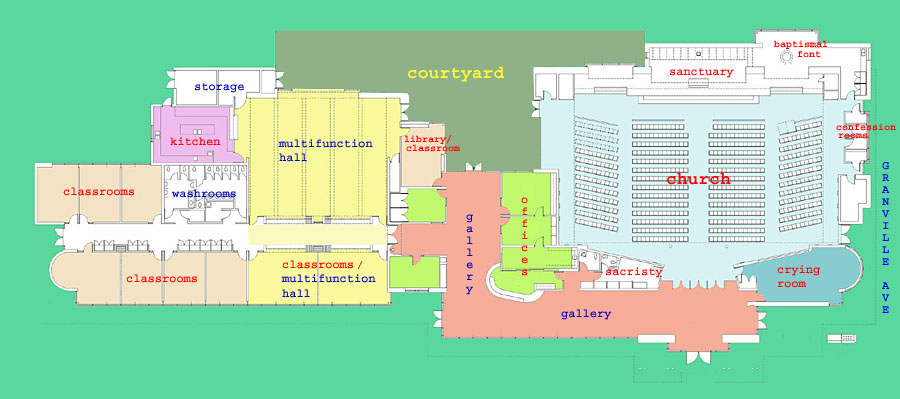

New Church Plan & Sketches

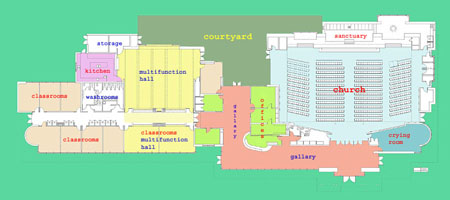

click on plan for larger view





Features

- steel frame

- metal roof

- Church : seating capacity - 600, crying room - 36, height - from 20 to 30 feet, radiant water heat

- multifunction room : 3760 sq ft when fully opened up with 2 classrooms, height - from 15 to 21 feet

     (can be used as a small gym with light sports activities)

- semi commercial kitchen

- private courtyard : 5150 sq ft, linked to the multifunction room and the gallery

   (a rest area; a children play area; an area for meditation for retreat)

-  10 classrooms for meetings, PREP & RCIA

-  internal gallery of 15 x 110 ft with all glass wall & windows facing out linking up the Church and the social activities area

- offices for parish priest, sisters and even an assistant parish priest

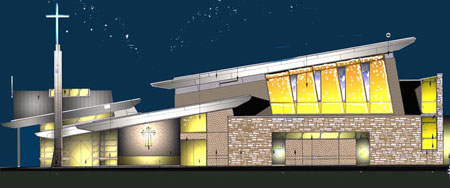

side view on Granville (rendering done by Vivian & Tony Yip of Building Committee)

front entrance

model of whole site

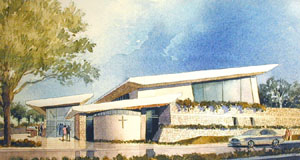

front view

front view

Granville Ave view

view from Granville Ave

church inside view

church inside view (from model)


Architect : DGBK  (Dalla-Lana Griffin Dowing Knap)
